上海金泰工程机械有限公司
45 Luopu Road, Anting, Shanghai 400-820-8326

PRODUCT

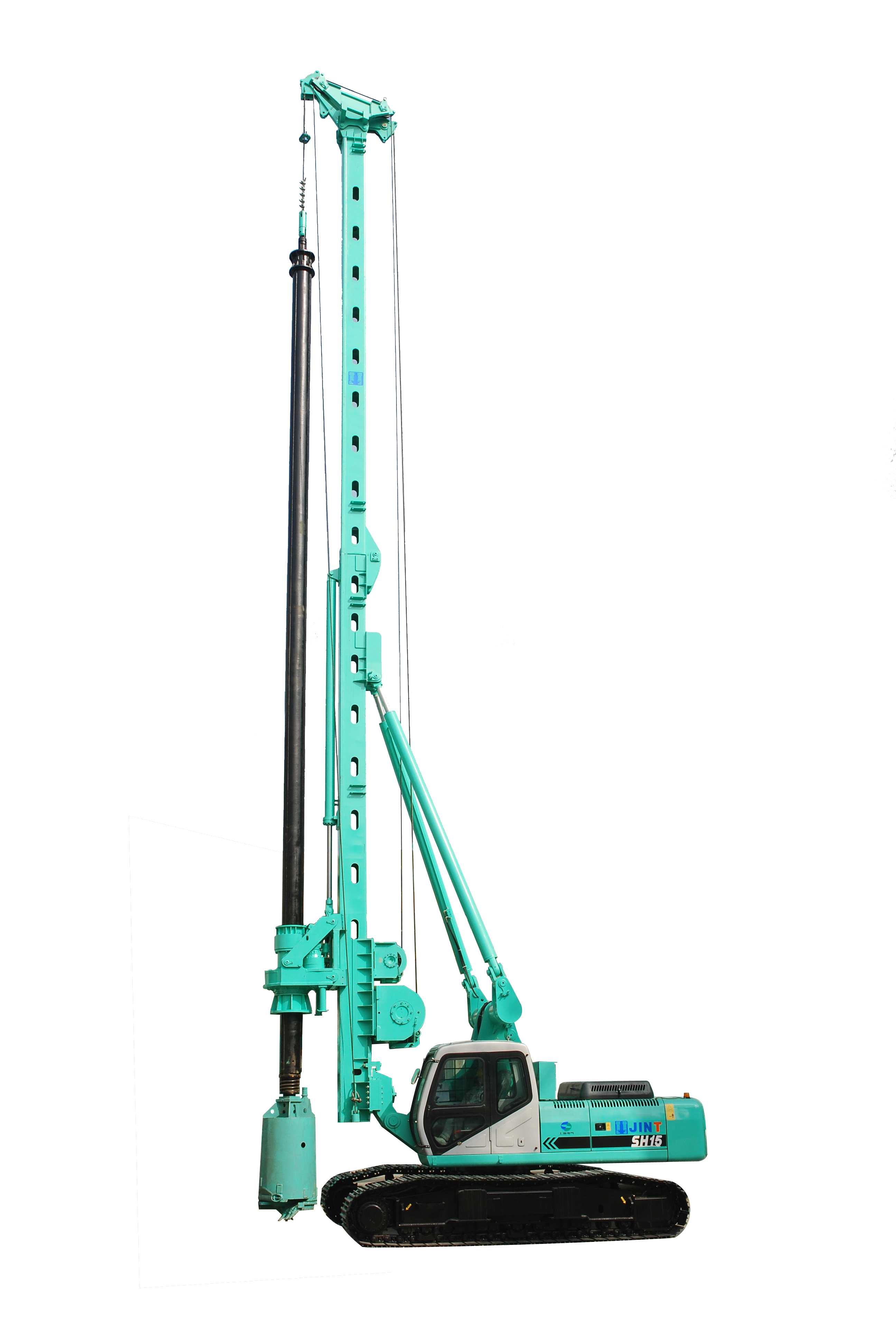

SH15

SH15 is a new type of piling machine with the big triangle structure, which combines the new technology and process of the modern hydraulic piling machinery. So, its performance reaches or exceeds the advanced level of the same products in the world, meanwhile, the whole machine with easy operation and high working efficiency is capable of digging deep pit due to its many international brand key accessories.
SH15 is widely applied to the construction of high buildings, bridge, water conservancy and so on and especially proper for the complex geological layers containing much water. SH15 is an ideal equipment for all kinds foundation construction.

Type SH15
Drilling tower
Height of tower (mm) 22500
Weight of base machine(without drilling tools)(kg) 44300
Crowd cylinder
Cylinder stroke (mm)  4000
Cylinder pressure force (kN)  150
Cylinder pulling force (kN)  200
Main winch
Single line pull (kN) 160
Rope diameter (mm) 26
Line speed max. (m/min) 50
Auxiliary winch
Single line pull (kN) 50
Rope diameter (mm)  17
Line speed max. (m/min) 50
Drilling parameter
Dimensions(mm)
L1 21012
L2 6585

L3  2585
Drilling diameter(mm)
uncased 1500
cased 2000
Length of case(m)
W/O oscillator  H-0.6

With oscillator H-1.8
